NV156FHM-N35
For BOE

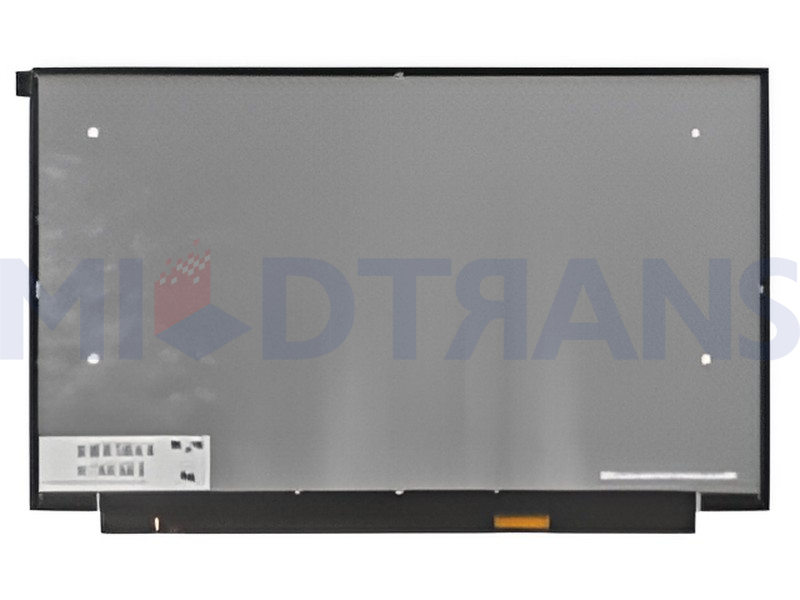

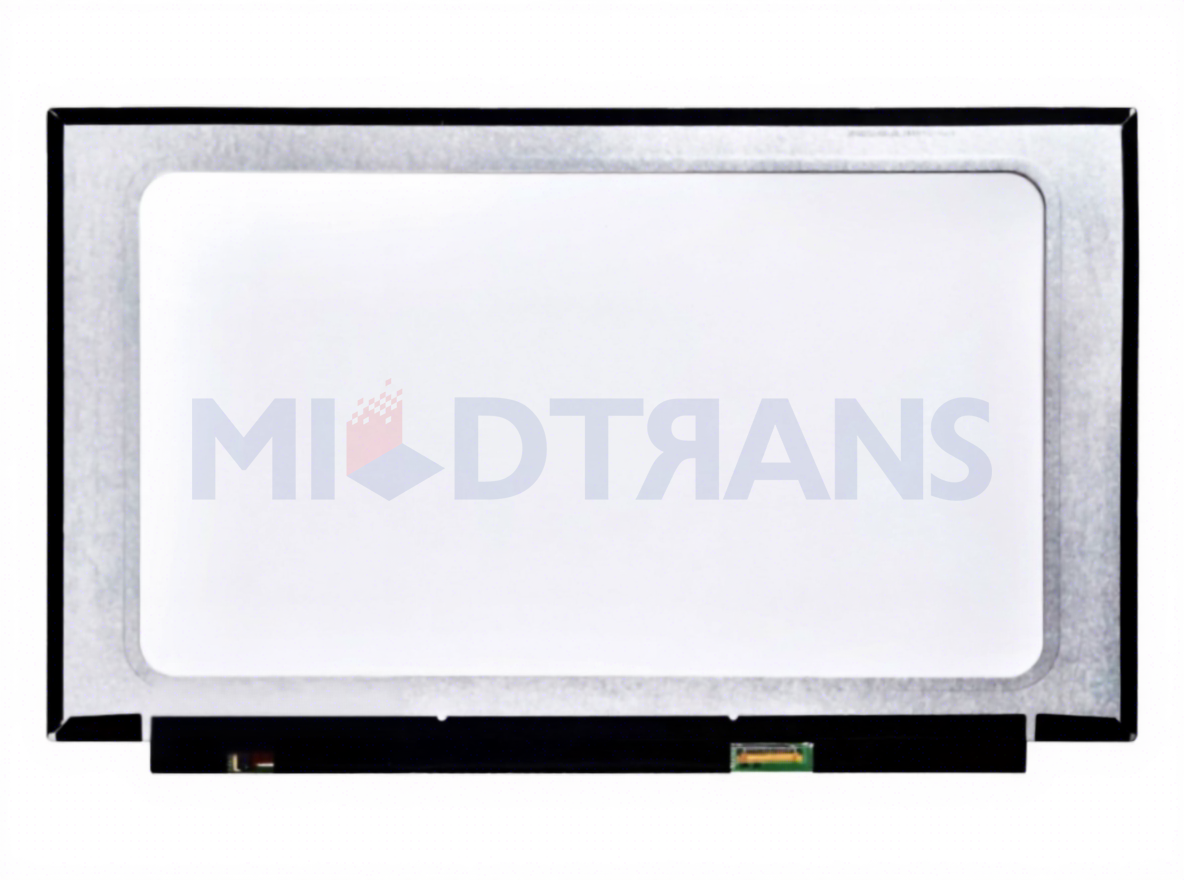

NV156FHM-N35 15.6-inch Laptop LCD Panel FHD 1920x1080 30-Pin eDP Non-Touch Display. This panel is specified for BOE and features ADS a-Si TFT-LCD technology, a glossy surface finish, and a slim 3.2 mm panel profile. It is suitable for compatible laptop display replacement, repair, refurbishment, and spare-parts distribution applications. The available compatibility reference covers HP Envy x360 15M-CN0011DX with the matching NV156FHM-N35 panel specification.
[Technical Specifications]
Model Number: NV156FHM-N35
Panel Brand: for BOE
Screen Size: 15.6 Inch
Resolution: 1920 x 1080 (Full HD / FHD)
Aspect Ratio: 16:9
Connector: 30-Pin eDP
Signal Interface: eDP 1.2, 2 Lanes, HBR1
Connector Pitch: 0.5 mm
Display Technology: ADS a-Si TFT-LCD
Touch Function: No Touch
Surface Treatment: Glossy, Haze 0%
Brightness: 220 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Color Coverage: 45% NTSC
Display Colors: 262K
Viewing Angle: 85/85/85/85 (Typ., CR10)
Response Time: 30 ms (Typ., Tn+Td)
Backlight Type: 10S4P WLED with LED Driver
Display Area: 344.16(H) x 193.59(V) mm
Panel Dimensions: 350.76(H) x 216.2(V) x 3.2(D) mm
Panel Weight: 380 g (Max.)
Supply Voltage: 3.3 V (Typ.)
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
[Compatibility Information]
Compatible Panel Model: NV156FHM-N35
Compatible Laptop Model: for HP Envy x360 15M-CN0011DX
Panel Type: 15.6-inch FHD ADS Non-Touch LCD
Interface Type: 30-Pin eDP
Application: Compatible laptop display replacement, repair, refurbishment, and spare-parts distribution
Brand Reference: for BOE
Please compare the original screen before purchasing, including the panel model, screen size, resolution, touch function, connector type, connector position, mounting structure, panel dimensions, and thickness. The same laptop series may use different screen configurations. This listing should not be treated as compatible with all HP Envy x360 i7 models or other HP Envy x360 series without separate verification.
[Key Features & Quality Assurance]
Clear FHD Visuals: The 1920x1080 resolution provides a clear 16:9 image format for compatible laptop replacement applications.
ADS Display Technology: The ADS panel structure supports 85/85/85/85 typical viewing angles for comfortable viewing from different positions.
Glossy Surface Finish: The 0% haze glossy surface provides a clear reflective appearance for compatible display assemblies.
Slim Panel Design: The 3.2 mm panel profile is suitable for compatible slim laptop display structures.
Balanced Display Performance: The 220 cd/m2 typical brightness, 700:1 typical contrast ratio and 45% NTSC color coverage support everyday laptop display use.
30-Pin eDP Interface: The 30-pin eDP 1.2 interface with 2-lane HBR1 signal transmission supports specification-based replacement matching.
[IMPORTANT NOTICE FOR BUYERS]
Check the Touch Function: This is a No Touch panel. Please do not purchase it for systems that require an integrated touch function.
Check the Connector: This panel uses a 30-pin eDP connector with a 0.5 mm pitch. Please do not purchase it for systems using a different connector type or pin configuration.
Match the Panel Label: Confirm that the original panel model is NV156FHM-N35 before ordering.
Verify the Laptop Model: The available compatibility reference is for HP Envy x360 15M-CN0011DX. Other HP Envy x360 models require separate verification.
Match the Physical Structure: Compare the display area, outer dimensions, thickness, connector position, and mounting structure against the original panel.
Professional Installation Recommended: Installation should be performed by a qualified technician. Disconnect the power adapter and battery before replacing the screen.
Product Configuration Notice: Screen specifications may vary between different laptop versions. Please contact the seller for compatibility confirmation before purchase.
