R133NWF4 R5
For IVO

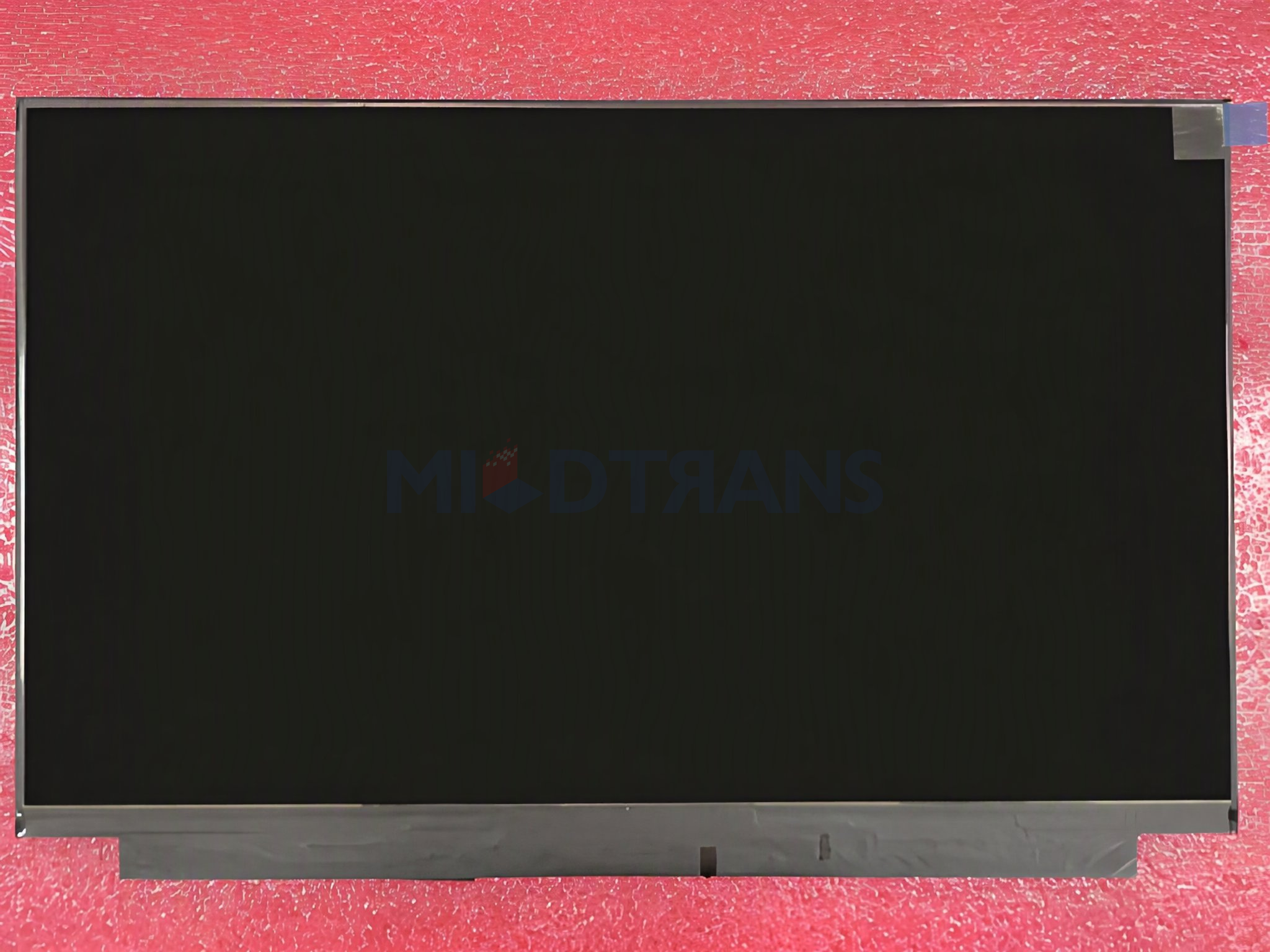

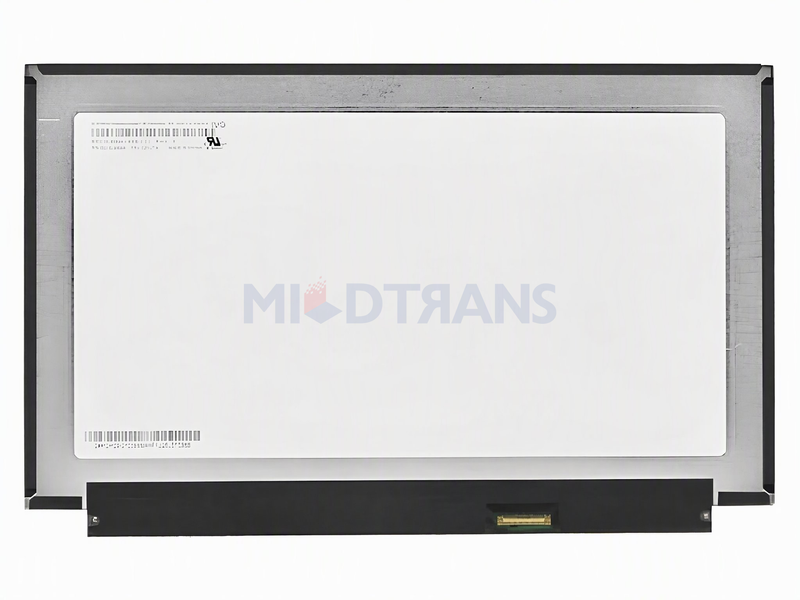

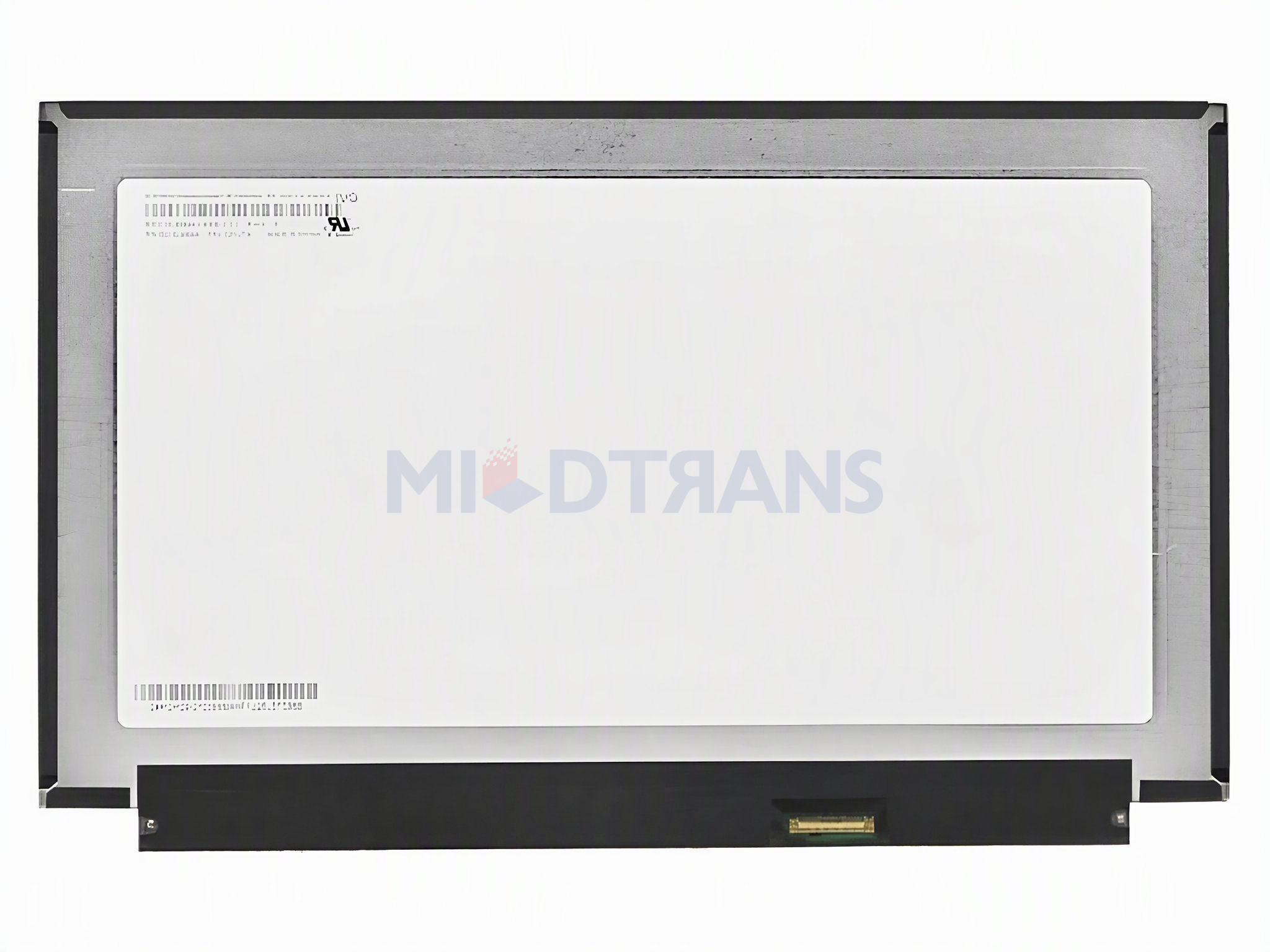

R133NWF4 R5 13.3" Laptop LCD Touch Screen FHD 1920x1080 40-Pin eDP IPS Matte Display. This IVO panel features IPS technology, On-Cell Touch functionality, a slim design, and a matte surface finish. It is suitable for compatible laptop display replacement, repair, and refurbishment applications requiring a 13.3-inch FHD touch panel with a 40-pin eDP interface.
[Technical Specifications]
Model Number: R133NWF4 R5
Panel Brand: IVO
Screen Size: 13.3 Inch
Resolution: 1920 x 1080 (Full HD / FHD)
Aspect Ratio: 16:9
Connector: 40-Pin eDP
Signal Interface: eDP 1.2, 2 Lanes
Display Technology: IPS a-Si TFT LCD
Touch Technology: On-Cell Touch
Touch Interface: USB
Surface Treatment: Matte
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 1200:1 (Typ.)
Color Coverage: 71% NTSC
Display Colors: 262K
Viewing Angle: 85°/85°/85°/85° (Typ.)
Response Time: 30 ms (Typ.)
Backlight Type: WLED with LED Driver
Display Area: 293.76 x 165.24 mm
Panel Dimensions: 300.26 x 188.25 x 3.00 mm
Panel Weight: 270 g (Max.)
Connector Pitch: 0.5 mm
Supply Voltage: 3.3 V (Typ.)
Mounting Type: Slim Panel Design
Storage Temperature: -20°C to 60°C
Operating Temperature: 0°C to 50°C
[Compatibility Information]
Compatible Panel Model: R133NWF4 R5
Compatible Brand: for IVO
Panel Type: 13.3-inch FHD IPS On-Cell Touch LCD
Interface Type: 40-pin eDP
Touch Interface: USB
Application: Compatible laptop display replacement and repair
Design Type: Slim LCD panel with matte surface
Please compare the original screen before purchasing, including the panel model, screen size, resolution, touch function, connector type, connector position, mounting structure, panel dimensions, and thickness. The same laptop series may use different screen configurations.
[Key Features & Quality Assurance]
Vibrant Visuals: Full HD 1920x1080 resolution with IPS technology provides clear image presentation and consistent viewing performance.
On-Cell Touch Function: Integrated On-Cell Touch technology supports touch-enabled laptop display applications through the USB touch interface.
Matte Surface Finish: The matte surface helps reduce reflections in bright working environments.
Slim Panel Design: The slim 3.00 mm panel profile is suitable for compatible compact laptop display assemblies.
Wide Color Coverage: 71% NTSC color coverage supports balanced color presentation for everyday laptop applications.
Stable Display Performance: 300 cd/m² typical brightness and 1200:1 typical contrast ratio provide clear image visibility and defined image contrast.
40-Pin eDP Interface: The 40-pin, 0.5 mm eDP connector supports eDP 1.2 and 2-lane signal transmission for compatible systems.
Replacement Application: Suitable for laptop screen replacement, repair, refurbishment, and spare-parts distribution.
[IMPORTANT NOTICE FOR BUYERS]
Check the Connector: This panel uses a 40-pin eDP connector. Please do not purchase it for systems using a different connector type.
Verify Touch Function: This is an On-Cell Touch panel with a USB touch interface. Please confirm that your original screen also supports the required touch configuration.
Match Specifications: Please double-check the original panel model, screen size, resolution, touch function, connector type, connector position, and mounting structure before purchasing.
Verify Panel Dimensions: Confirm the display area, outer dimensions, thickness, and mounting position against the original panel.
Check the Panel Label: The model number and revision on the original screen label should be checked before ordering.
Professional Installation Recommended: Installation should be performed by a qualified technician. Disconnect the power adapter and battery before replacing the screen.
Product Configuration Notice: Screen specifications may vary between different laptop versions. Please contact the seller if you need compatibility confirmation before purchase.
