How is an ABNT2 keyboard layout different from a United States layout?

How is an ABNT2 keyboard layout different from a United States layout?

An ABNT2 keyboard is not a United States layout with different printing on the caps. The dedicated Ç key, the accent-key positions, and right Alt as AltGr (Alternate Graphics) still have to match as hardware. Matching legends — the letters pad-printed on the caps — is not the layout. A software United States-International overlay on ANSI hardware is not an ABNT2 keyboard.

The miss is easy to postpone. A listing that only shows the printed alphabet looks finished in the photograph and still leaves the error until after installation. A cap that looks close can sit on the wrong physical map. Language layout is already a named row on the usual keyboard check. Printed letters do not tick that row.

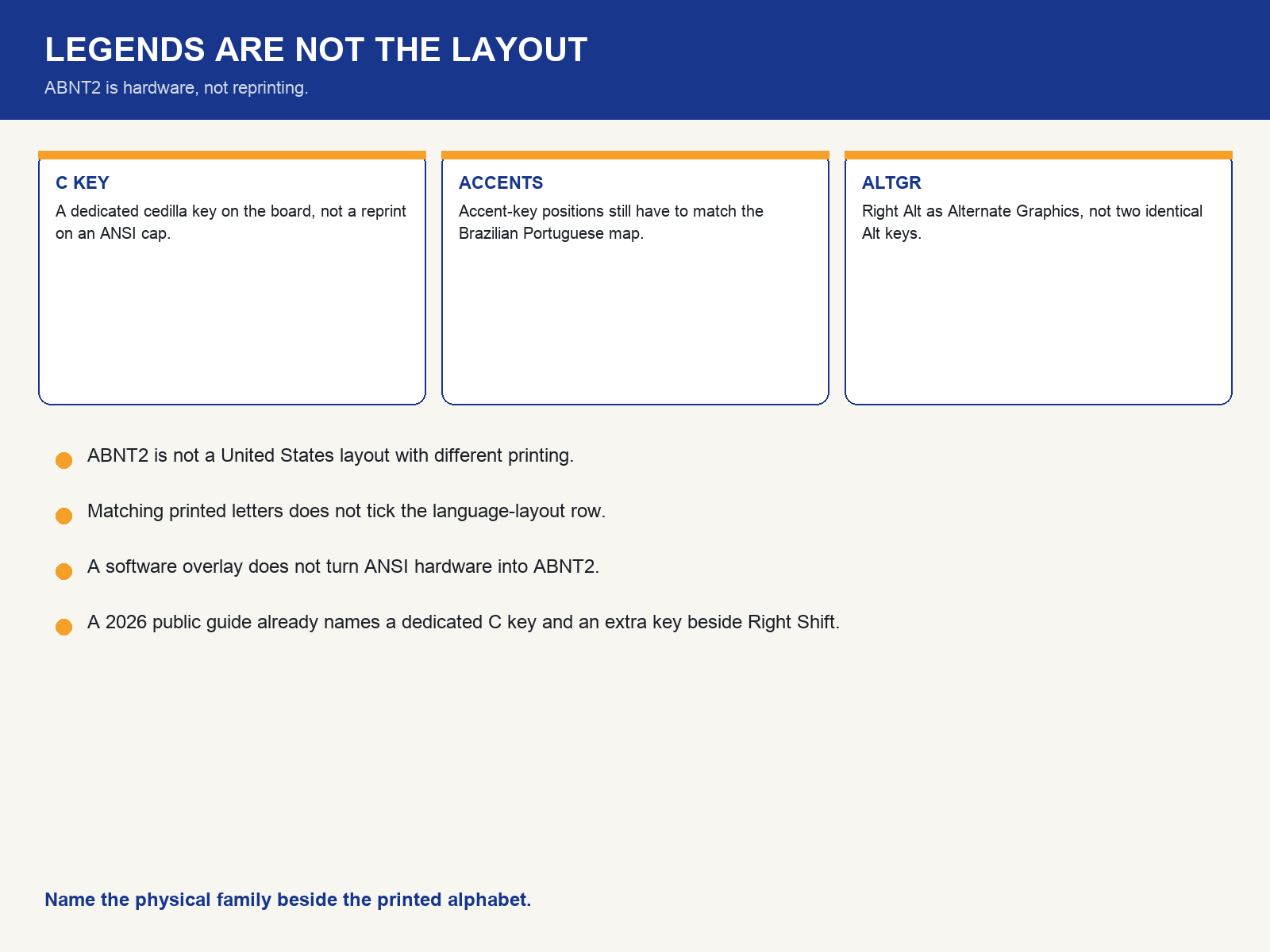

Why are printed legends not the layout?

Printed legends only record what was pad-printed on the caps. They do not tell you which physical key sits where, or which third-layer character right Alt is supposed to produce. ABNT2 — the Brazilian keyboard standard — is a physical layout family. A United States ANSI board is another family. Swapping the printed alphabet does not move a board from one family to the other.

Buyers confuse language layout with keycaps because both sit on the same photograph. Model, version and interface mix-ups on other accessory families train the same habit: read the loudest token and skip the rest. No house can erase that risk. A listing can still name Ç, accent positions and AltGr so the skip is visible before the carton.

If a quote only repeats the printed letters, send it back. Ask which physical layout the board actually is.

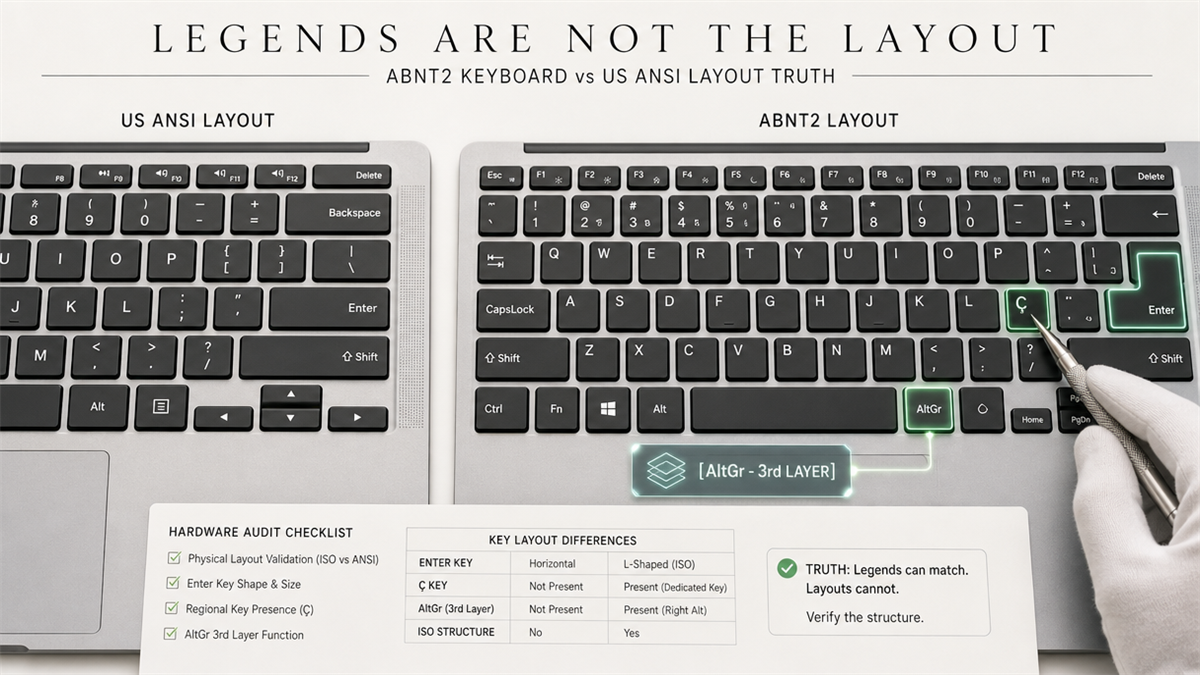

What physical keys actually differ?

A 2026 English layout guide already splits ABNT2 from ANSI as a physical standard. On a full-size board it lists ABNT2 at 107 keys, with an ISO-style Enter — the tall, backwards-L return — a dedicated Ç key, the Portuguese c with a cedilla, and an extra key to the right of Right Shift. ANSI is listed at 104 keys, with a wide horizontal Enter and a long left Shift. Those counts are public full-size examples, not a house stock table and not a claim that every laptop board uses the same count.

ISO-family boards, which ABNT2 is based on, replace right Alt with AltGr so a third character layer sits on the hardware. Shift already gives a second character on a key; AltGr is the key that is supposed to give a third. ANSI boards use two identical Alt keys and have no AltGr. Accent keys for Portuguese sit in ABNT2 positions. A United States board that reprints Ç on a cap without those positions is still not ABNT2.

Why can software not finish the job?

A United States-International software layout can type some accented characters with dead keys, which wait for the next letter and then add an accent, or with combinations. That overlay does not add a dedicated Ç key, does not move Right Shift, and does not turn right Alt into AltGr on the hardware. Brazilian Portuguese users still miss characters when the physical map is wrong. Treat the overlay as a typing aid on the board you already have, not as proof that you shipped ABNT2.

If the confirmation only names a software layout, it has not named the hardware. Ask which physical family will arrive: ABNT2 or United States ANSI. If those two names differ, you do not yet have a fit.

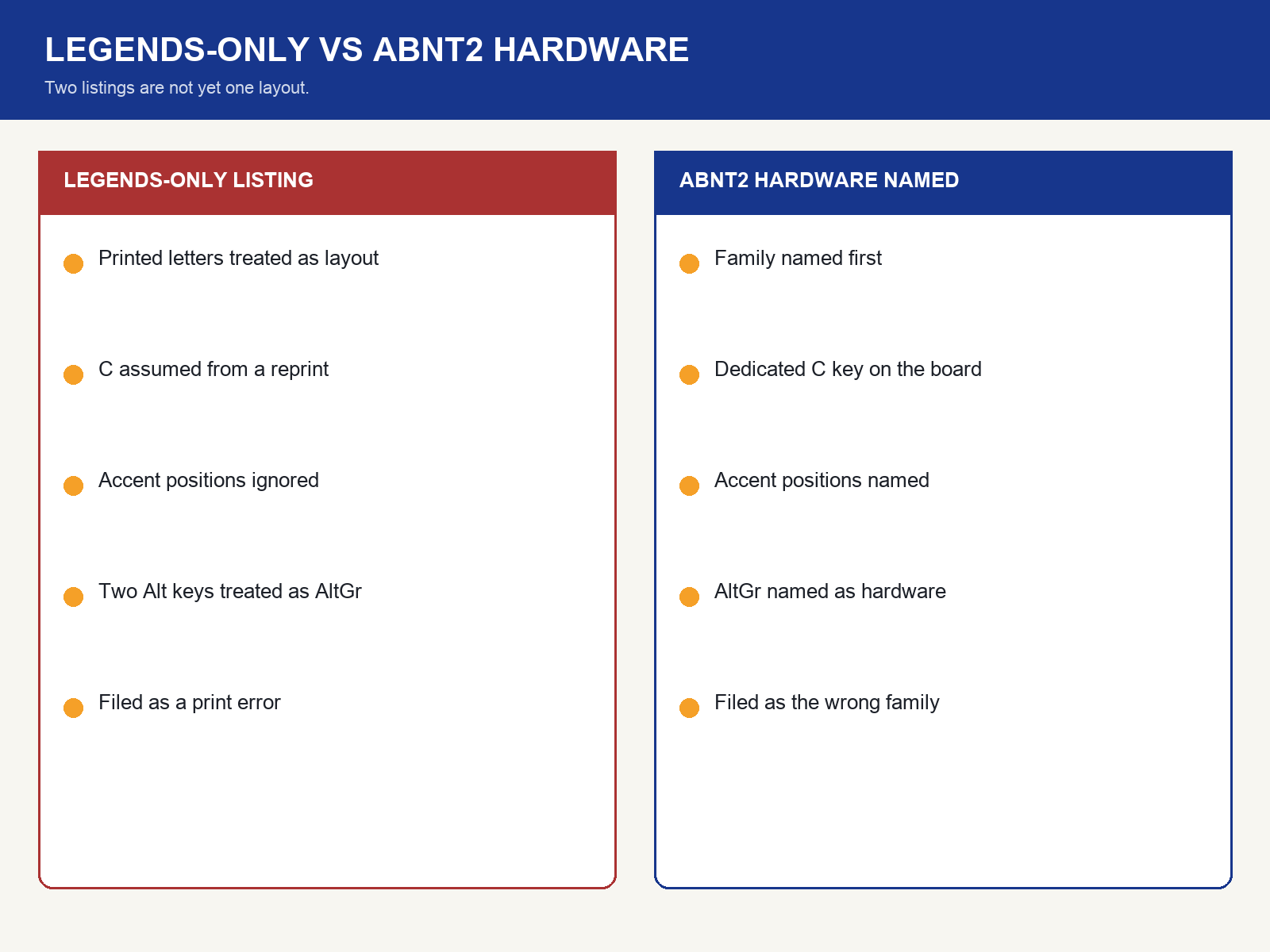

How should a listing split legends from the physical family?

Split printed legends from the physical family, then keep language layout as the named row. The comparison is legends-only versus ABNT2 hardware. A reprint on the caps does not move the board into the other family. Ç, accent positions and AltGr still have to be named before the lot is treated as a fit.

A laptop series name is weaker than the layout family. Search ABNT2 or ANSI first, then confirm Ç, accent positions and AltGr. A “compatible equivalent” is only an equivalent after that family still matches.

Key facts

These seven facts are the ranking, not a catalogue. ABNT2 is a physical family. United States ANSI is another. Printed legends are not that split. Ç, accent positions and AltGr still have to be named. A 2026 English guide already lists ABNT2 with a dedicated Ç key and an extra key beside Right Shift. A software overlay is not the hardware.

· ABNT2 is not a United States layout with different printing.

· Language layout is a named keyboard-check row, not a photograph of the caps.

· A dedicated Ç key is hardware, not a reprint.

· Accent-key positions still have to match.

· AltGr on ABNT2 is not the same as two identical Alt keys on ANSI.

· A United States-International overlay does not turn ANSI hardware into ABNT2.

· Public full-size counts on that 2026 page are 107 for ABNT2 and 104 for ANSI; they are examples, not a house table.

What should you ask before you list or buy a lot?

Ask whether the board is ABNT2 or United States ANSI; whether Ç is a dedicated physical key; where the accent keys sit; and whether right Alt is AltGr. Ask for a photograph of the lower-right cluster, not only the printed alphabet. If the seller answers with “Brazilian printing”, they have not answered.

Write the layout family on the confirmation beside language layout. Mixed models can sit on one lot. A trial of two pieces still needs the same layout fields as a regular five-piece lot. Ordinary outbound here is 7–15 days. That clock is the buying path. It does not turn reprinted legends into ABNT2.

How does this desk check language layout on a keyboard lot?

This desk checks outgoing keyboard lots against named dimensions that already include language layout, beside key function, bounce, backlight, flex, and TrackPoint or fingerprint where those apply. Printed legends are not the language-layout row. We do not treat a software overlay as a passed ABNT2 lot.

We are a buying-and-shipping house, not a factory. Shenzhen Mildtrans Industrial Co., Ltd. (深圳市中川实业有限公司) has been on the mainland register since 2004. Mildtrans Industrial Co., Limited (中川实业投资有限公司) has been on the Hong Kong SAR, China register since 2010. Most receipts use the Hong Kong name. Keyboards sit on our five core families.

Regular categories start at five pieces, with a trial of two, mixed models accepted. Ordinary outbound is 7–15 days. Payment through this desk is T/T — telegraphic transfer. A letter of credit is refused. None of those commercial rows replace ABNT2 versus ANSI on the confirmation.

FAQ

Is an ABNT2 board just a United States board with Ç printed on a cap?

No. ABNT2 is a physical family. A 2026 English guide already names a dedicated Ç key, an ISO-style Enter, and an extra key beside Right Shift. Printing Ç on an ANSI cap does not add those keys.

Can United States-International software replace ABNT2 hardware?

No. The overlay can type some accented characters. It does not add Ç as a dedicated key, and it does not turn right Alt into AltGr on the board. Name the hardware family.

Why does AltGr matter if both boards have a right Alt?

On ABNT2, that key is AltGr and carries a third character layer. On ANSI, the two Alt keys are identical and there is no AltGr. Treat them as different hardware, not as the same modifier with new printing.

What should the confirmation name besides the printed alphabet?

The layout family — ABNT2 or United States ANSI — then Ç as a physical key, accent positions, and whether right Alt is AltGr. Legends can sit beside those fields. They do not replace them.
